Johnson all welded wire wound screen technical parameters:

Screen diameter (mm): 62, 75, 90, 102, 116, 128

Screen length (mm): 500, 1000, 1500, 2000

Screen gap (mm): 0.1, 0.15, 0.2, 0.25, 0.3, 0.35, 0.4

Screen pipe joint form (mm): short pipe joint, male and female threaded joint

Note: in addition to the above specifications of screen tubes, we can also manufacture a series of screen tubes with diameters from ￠ 35mm to ￠ 300mm and lengths from 100mm to 250mm according to customers' requirements.

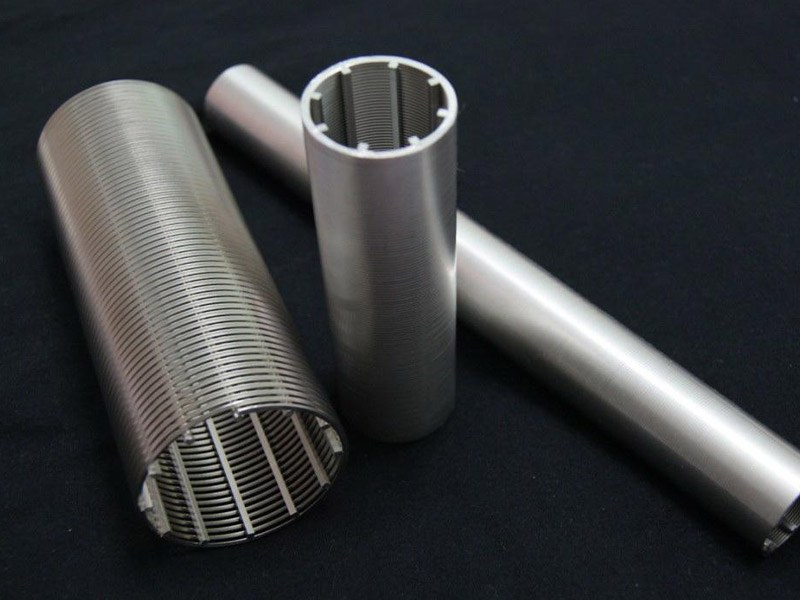

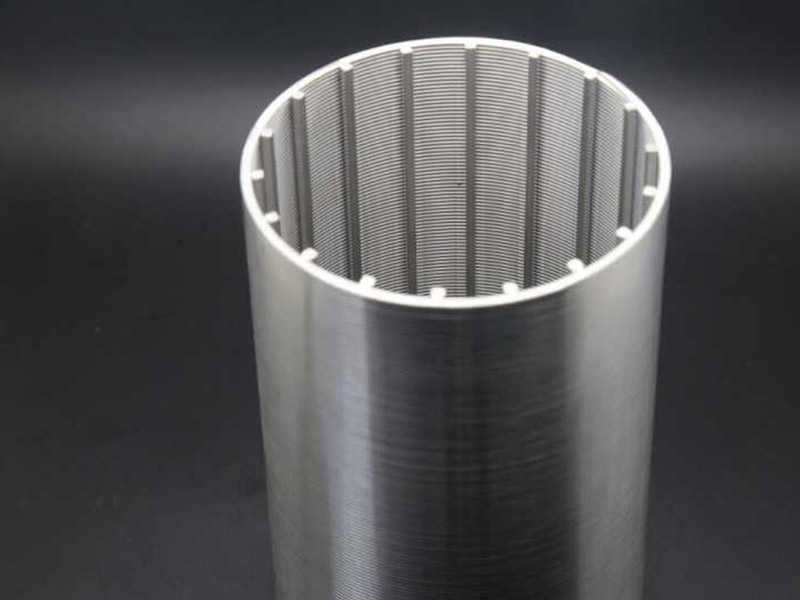

Johnson screen pipe is welded by trapezoidal wire winding on a group of longitudinal support rods arranged in a circle.
